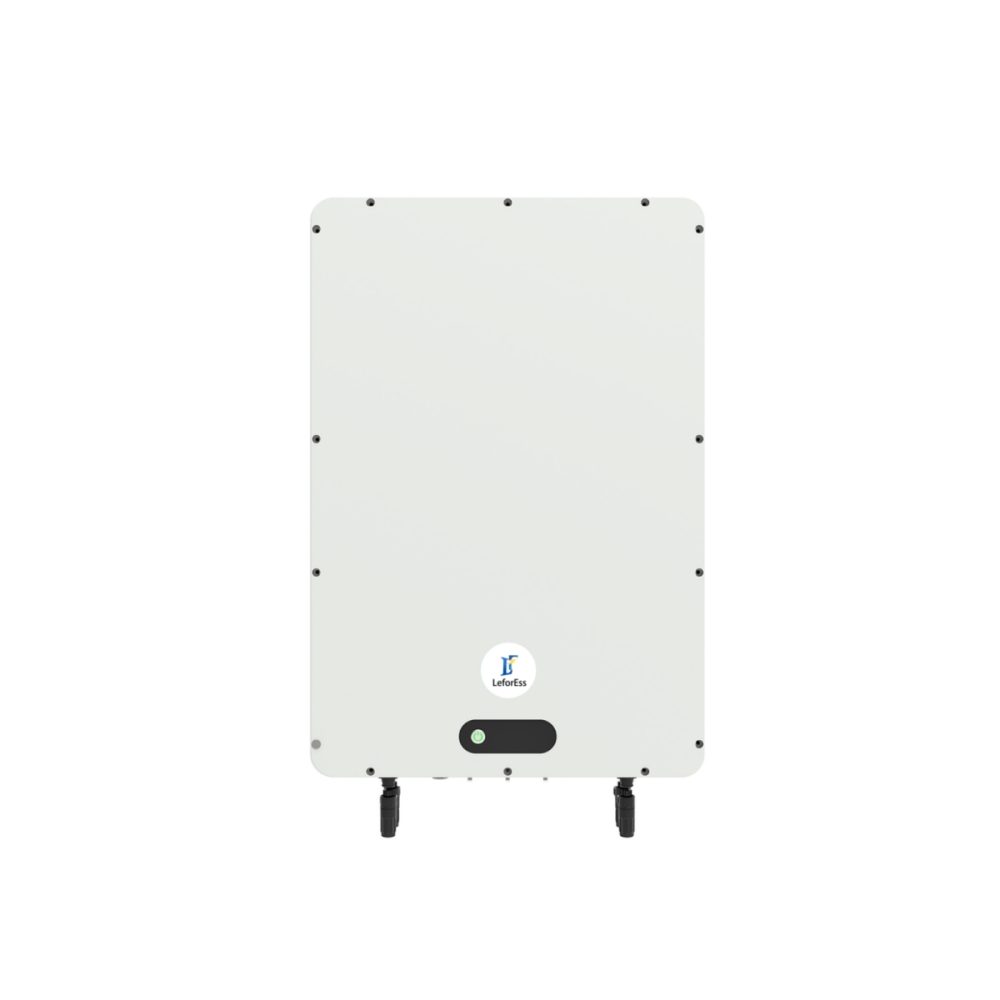

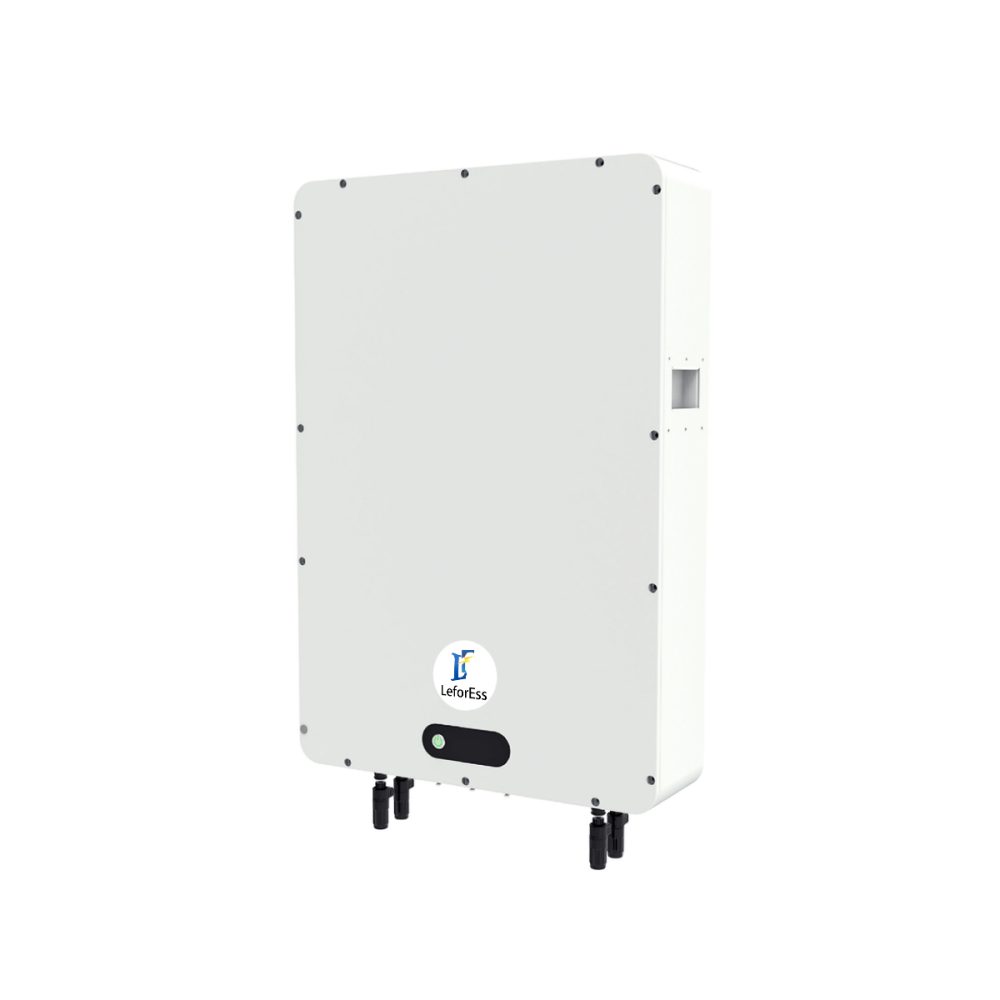

51.2V 200Ah 10kwh powerwall for home
Lefor Energy Storage has launched a high performance home energy storage battery. With an actual capacity of 10.64kWh and a 5-year warranty, this 10kWh powerwall battery is ideal for residential energy storage and solar power applications.
The 10kWh powerwall battery is IP65 rated and has short circuit protection and overcharge protection. Over-discharge protection is also included. Each battery has a balancing circuit. Multiple series batteries can be connected in parallel.
| Rated Capacity | 104Ah |
| Nominal Voltage | 3.2V |
| Internal lmpedance | ≤0.4 mQ |
| Standard charge | 0.5C |
| Standard discharge | 1C |
| Standard Charge Cut-off Voltage | 13.65V |
| Standard Discharge Cut-off Voltage | 2.5V |
| Dimension | 52.3±0.5(T)*148.4±0.6(W)*119±0.6(H)mm |
| Weight | 1.93±0.1kg |
| Operating Temperature Range | 1-20~60℃ |
| Combination method | 2P16S |
| Rated Capacity | 208Ah |
| Type | 51.2V208Ah,10.64kWh |
| Nominal capacity | 10.64kWh |
| Nominal voltage | 51.2VDC |
| Voltage at end of Discharge | 2.7V~43.2V |
| Recommended charging voltage by manufacturer | 56.8Vor3.55V/any cell |
| Internal lmpedance | ≤40mO |
| Standard charge | 90A |
| Max Charging Current(lcm) | 100A |
| Upper limit charging voltage | 56.8Vor 3.55V/cell |
| Standard discharge | 90A |
| Max continuous Discharging current | 100A |
| Discharge Cut-off voltage(Udo) | 43.2V |
| Recommend charging method declared by the manufacturer | Charged with constant current 90A until battery voltage reaches 56.8V, then switch to constant voltage 56.8V.til charge currentdrops to20A |
| Recommend discharging method declared by the manufacture | Discharged the battery with constant current 90Ato end of discharge cut-off voltage 43.2V |
| OperationTemperature Range | Charge:3~47℃ Discharge:-7~47℃ |
| Storage Temperature Range | -20℃~60℃ |
| Battery system Size/Weight | (L762*W518*H164)±3mm/85±3kg |
| Packing size | L870*W595*H245mm |
| Class of protection | IP65 |
Introduction of Our 10.64kWh LiFePO4 Battery
Introducing the advanced 10.64 kWh home battery, crafted for optimized solar energy storage. It boasts a wall-mounted design, 51.2V, and 200Ah capacity, featuring premium A-grade REPT lithium iron phosphate cells for enhanced safety and performance durability. Our battery supports 8000+ deep cycles, marking it as perfect for long-lasting use with available capacities tailored to individual needs.
This high-performing battery allows a maximum discharge of 100A and includes an IP65-rated, dual-protected BMS that guards against overvoltages and operational hazards. Compact and modular, it is straightforward to install and includes additional features such as PCB integration to prevent short circuits, guaranteeing enduring reliability.
Experience smart energy management with built-in Wi-Fi monitoring and OTA firmware upgrades, maximizing operational efficiency while reducing maintenance costs. Extendable up to 16 units in parallel, our battery is scalable to support substantial energy requirements. Trust in our technology for a safer, more dependable power storage solution that stands up to the rigors of daily use.
Key Features:
- High safety standards with robust BMS and IP65 protection.
- Long battery life with over 8000 deep cycles.
- Space-efficient, easy installation.
- High consistency and performance stability.
- SWi-Fi and OTA updates for ease of maintenance.
- Customizable configurations available, tailoring to each user’s specific needs.
Trust in the resilience and capability of our next-generation battery technology for your sustainable home energy solutions.
Why Choose Lefor Energy:
Environmental Commitment: Lefor Energy drives sustainable energy solutions with products like our 10.64kWh LiFePO4 Battery to combat climate change effectively and economically.
Industry Expertise: Since inception, we’ve built a strong legacy based on deep industry knowledge, delivering world-class energy solutions.
High Industry Standards: Leading with integrity, our products meet stringent quality and service standards to achieve excellence in every project.
Comprehensive Solutions: From consultancy to completion, Lefor Energy manages all aspects of your energy needs with precision and professionalism.
Flexible Solutions: Customizing services to fit client needs, ensuring timely, budget-friendly, and efficient energy solutions.
Global Partnerships: With strategic alliances across the globe, we guarantee access to cutting-edge technology and best-in-class services.
Packing & Delivery:
Packaging Options:
Standard: Carton box with pallet.
Customizable to client specifications.
Shipping Details:
Samples lead time: 25-30 working days; bulk orders: 15-20 working days.
Suggested sample shipment via DHL, UPS, FedEx, TNT; bulk orders by sea. Forwarder service available.
How to Use the 10.64 kWh LiFePO4 Home Battery:
Follow manufacturer guidelines for optimal use.
Avoid short circuits and extreme conditions to prolong battery life.
Store in a cool, dry place and maintain charge if stored long-term.
Ensure proper ventilation around the installation area.
Our Services:
Customization Options (OEM & ODM):
Tailor battery specifications like voltage, capacity, and dimensions.
Customize BMS charging and discharging currents, connectors, casing, and wiring.
Apply your brand with our logo services.
After-Sales Support:
Rapid responses within 24 hours.
Quick resolution of customer issues.
3-year quality warranty on LiFePO4 batteries.
Each battery is tested before shipment.
Rely on Lefor Energy for reliable, eco-friendly, and cutting-edge solutions that cater to modern energy needs.
