INTEGRATED OUTDOOR HIGH-VOLTAGE BATTERY CABINET

HV51.2V200Ah Outdoor High-Voltage Battery Cabinet

MODEL · HV51.2V200Ah

HV51.2V200Ah integrates six to eleven 51.2V 200Ah LiFePO4 modules inside an IP54 cabinet. The catalog covers 307.2-563.2V nominal voltage, 61.44-112.64kWh nominal energy and 50A recommended, 100A maximum current. Air-conditioning thermal management and a -20-60C working range distinguish it from the indoor ET rack systems. PCS, protection, fire-safety scope and site foundation remain project-specific.

61.44-112.64kWhNominal system energy

307.2-563.2VNominal voltage

6-11Series modules

IP54Cabinet rating

Air conditionerThermal management

100AMaximum current

For EPC contractors and commercial project buyers needing a protected cabinet format for outdoor solar storage, backup or distributed energy sites.

Request Datasheet & Quote Check System Compatibility

Technical values are based on the supplied LeforESS catalog and remain subject to the selected model datasheet.

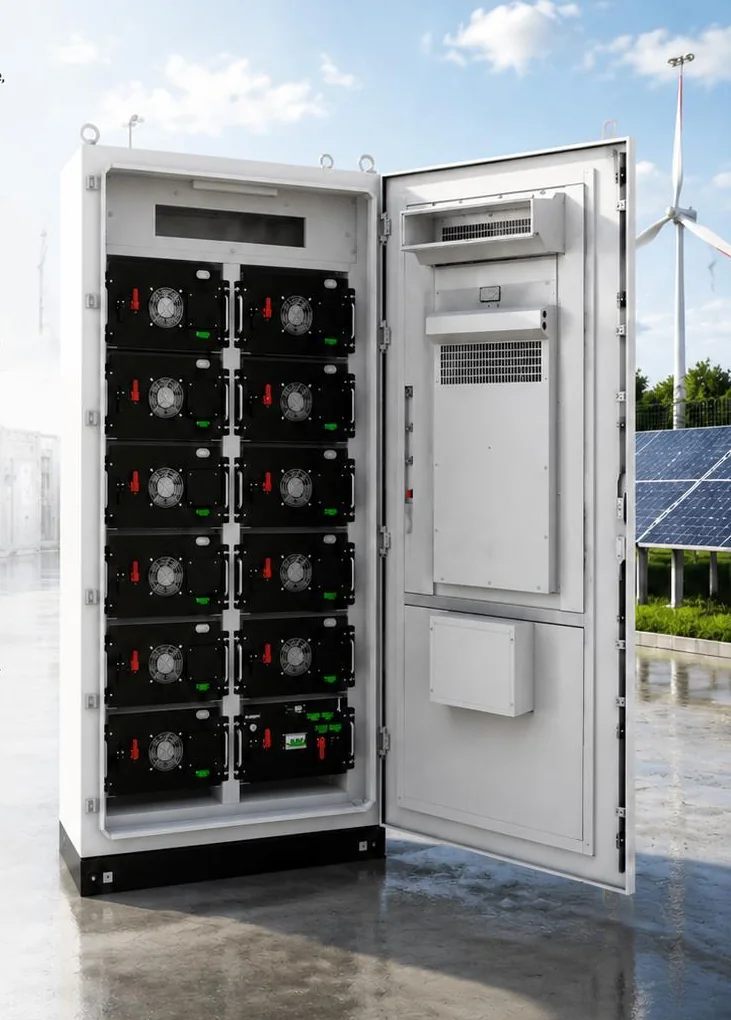

HV51.2V200Ah IP54 outdoor high-voltage battery cabinet with open door

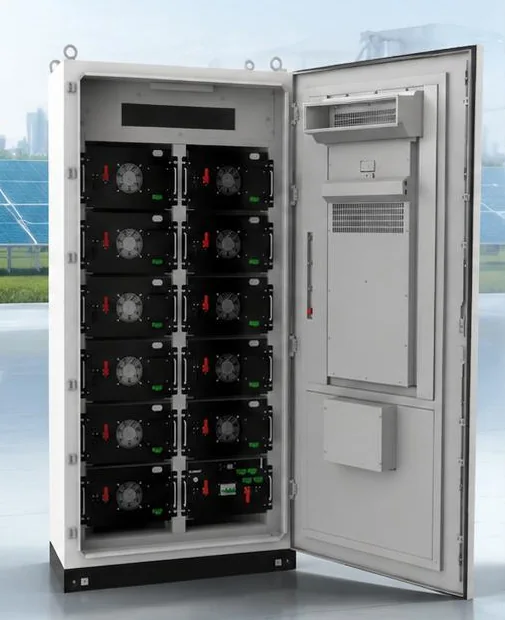

Open high-voltage cabinet showing internal battery modules

Cabinet interior

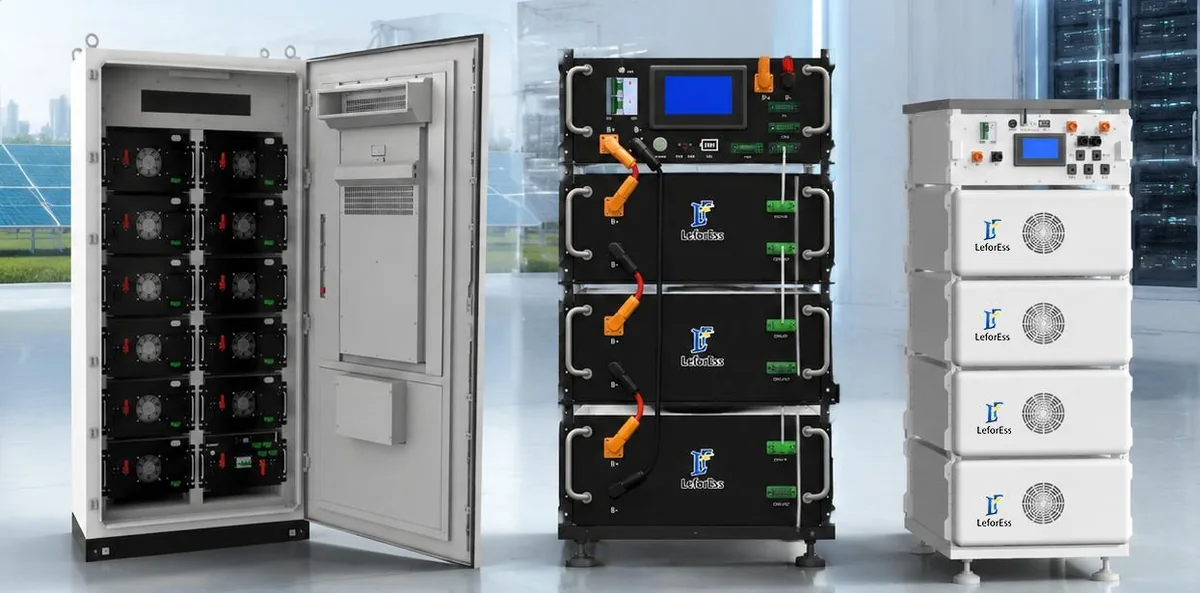

Outdoor cabinet rack and stackable high-voltage battery family

HV product family

10.2kWhModule energy

51.2V / 200AhModule rating

278.4-633.6VOperating range

CAN / RS485Communication

-20-60CWorking temperature

Integrated cabinetInstallation

Outdoor Commercial Battery Enclosure

61.44-112.64kWh in an IP54 Integrated Cabinet

This model packages the battery modules and thermal enclosure as one cabinet platform. It reduces indoor-room dependence but does not remove the need for site engineering, PCS matching and local safety compliance.

Commercial solar energy shifting

Locate storage near the electrical point of connection where the site plan, temperature exposure and maintenance access support the cabinet.

Distributed facility backup

Configure the six-to-eleven-module bank around verified critical loads, transfer strategy and compatible power-conversion equipment.

Remote energy sites

Use the conditioned cabinet where outdoor equipment is needed, while confirming altitude, humidity, dust, drainage and communications for the actual location.

Verified Product Data

HV51.2V200Ah Cabinet Specifications

These values describe the battery cabinet in the supplied catalog. They are not specifications for the separate 215.04kWh container product already listed on the website.

Module	Cell chemistry	LiFePO4
	Module energy	10.2kWh
	Nominal voltage	51.2V
	Capacity	200Ah
	Module dimensions (W x D x H)	396 x 575 x 248mm
	Approximate module weight	77kg
System	Modules in series	6-11 optional
	Nominal voltage	307.2-563.2V
	Operating voltage	278.4-633.6V
	Nominal energy	61.44-112.64kWh
	Usable energy listed	55.3-101.38kWh
	Charge/discharge current	Recommended 50A; maximum 100A
Cabinet	Cooling	Air conditioner
	Enclosure rating	IP54
	Dimensions (W x D x H)	1394 x 1015 x 2164.5mm
	Approximate weight	965-1350kg
	Installation	Integrated cabinet installation
Environment	Working temperature	-20-60C
	Humidity	5%-85% RH
	Altitude	<2000m
	Storage temperature	0-35C
Integration	Communication	CAN, RS485
	Recommended depth of discharge	90%
	Cycle life listed	>=6000 cycles
	Warranty listed	5 years
	Certification listed	CE, MSDS, UN38.3

Product specifications and configuration options must be confirmed against the selected model datasheet before ordering. The brochure mentions fire protection but does not define detection, suppression agent, interfaces or compliance standard. Keep the fire-safety scope conditional until a cabinet drawing and safety document are approved.

Outdoor Site Integration

Cabinet Thermal Control and Site Interfaces

The air-conditioned IP54 enclosure supports outdoor deployment, but environmental protection depends on installation details such as cable entry, drainage, spacing and routine service access.

Conditioned enclosureConfirm air-conditioner supply, setpoints, condensate handling and expected heat load for the selected duty cycle.

Foundation designUse the final 965-1350kg configuration, wind conditions and local structural code to engineer anchoring and access.

Scope boundaryList battery modules, BMS, cabinet, HVAC, protection and communications separately so the buyer knows what is included.

Outdoor interfacesSeal cable entries and verify ingress protection after all site wiring and communication work is complete.

Technical Buying Questions

Outdoor HV Cabinet Project Questions

Does the cabinet include a PCS or hybrid inverter?

The supplied specification table defines the battery cabinet and communication interfaces. Any PCS or inverter shown nearby must be quoted and verified separately unless the commercial offer explicitly includes it.

Can the cabinet be placed in any outdoor location?

No. IP54 is only one design input. Flood risk, drainage, solar loading, ambient temperature, corrosion, clearances and local codes still require review.

Is fire suppression included?

The brochure references fire protection but does not provide a system specification. Request the current safety drawing, component list and applicable compliance documents.

How is the final cabinet energy selected?

Choose six to eleven modules based on PCS voltage, required usable energy, current, transport weight and the approved cabinet configuration.
