3.6 kW–12 kW
Hybrid Inverters
Tailored for homes and small businesses,
our hybrid inverters deliver scalable power
with seamless grid-connected and off-grid operation.
Solve Energy Woes: Hybrid inverters
Tired of skyrocketing electricity bills eating into your home or small business budget? Frustrated by frequent power outages disrupting daily operations or family life?
Our hybrid solar systems are designed to turn these headaches into history. Imagine slashing monthly energy costs by harnessing reliable solar power, while staying powered up even when the grid goes down—seamlessly switching between grid-connected and off-grid modes.
Trusted by homeowners and small businesses across Europe and America, they scale with your needs: start small for a home, expand easily as your business grows. Backed by a 5-year warranty, they’re built to deliver consistent, cost-saving performance, no matter the weather or grid conditions.
Ready to take control of your energy future?
lefor hybrid inverters

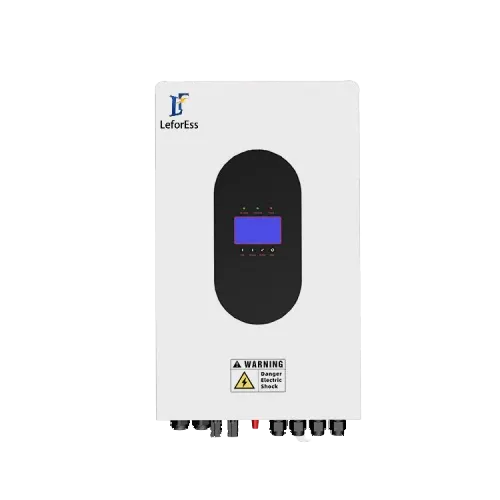

3.6–5 kW
Entry-Level Hybrid Storage
| Item Code | LF-GH3600TL | LF-GH4600TL | LF-GH5000TL |
|---|---|---|---|
| Power | 3600W | 4600W | 5000W |
| MPPT Details | 2 trackers (1/1) 120–430V DC | 2 trackers (1/1) 120–430V DC | 2 trackers (1/1) 120–430V DC |
| Electrical Specs | 230V AC 50/60Hz 5200W Max Input 500V Max VOC | 230V AC 50/60Hz 6600W Max Input 500V Max VOC | 230V AC 50/60Hz 7000W Max Input 500V Max VOC |
| Battery Specs | Lithium/Lead-acid 48V | Lithium/Lead-acid 48V | Lithium/Lead-acid 48V |
| Comm. & Parallel | RS485/CAN/WIFI 6 parallel WIFI ✔️ | RS485/CAN/WIF 6 parallel WIFI ✔️ | RS485/CAN/WIFI 6 parallel WIFI ✔️ |
| Protection | IP65 | IP65 | IP65 |
| Warranty | 5 years | 5 years | 5 years |
5.5–8 kW
Mainstream Residential Storage
| Item Code | LF-SEI-5K-SP | LF-SEI-6K-SP |
|---|---|---|
| Power | 5500W | 6000W |
| MPPT Details | 2 trackers 120–450V DC | 2 trackers 120–450V DC |
| Electrical Specs | 230V AC 50/60Hz 4000+4000W Max Input 500+500V Max VOC | 230V AC 50/60Hz 4500+4500W Max Input 500+500V Max VOC |
| Battery Specs | Lithium/Lead-acid 48V | Lithium/Lead-acid 48V |
| Comm. & Parallel | RS485/CAN/USB 6 parallel | RS485/CAN/USB 6 parallel |
| Protection | IP65 | IP65 |
| Warranty | 5 years | 5 years |
| Item Code | LF8K-P1LA |
|---|---|
| Power | 8000W |
| MPPT Details | 2 trackers (1/1) 150–425V DC |
| Electrical Specs | 230V AC 50/60Hz 10400W Max Input 500V Max VOC |
| Battery Specs | Lithium/Lead-acid 40-60V |
| Comm. & Parallel | RS485/CAN/WIFI 6 parallel WIFI ✔️ |
| Protection | IP65 |
| Warranty | 5 years |
9–10 kW
High-Power Commercial Storage
| Item Code | LF-SEI-10K-UP |
|---|---|
| Power | 10000W |
| MPPT Details | 2 trackers 125–425V DC |
| Electrical Specs | 120/240V AC 50/60Hz 5500+5500W Max Input 500Vdc+500Vdc Max VOC |
| Battery Specs | Lithium/Lead-acid 48V |
| Comm. & Parallel | RS485/CAN/USB 6 parallel |
| Protection | IP65 |
| Warranty | 5 years |

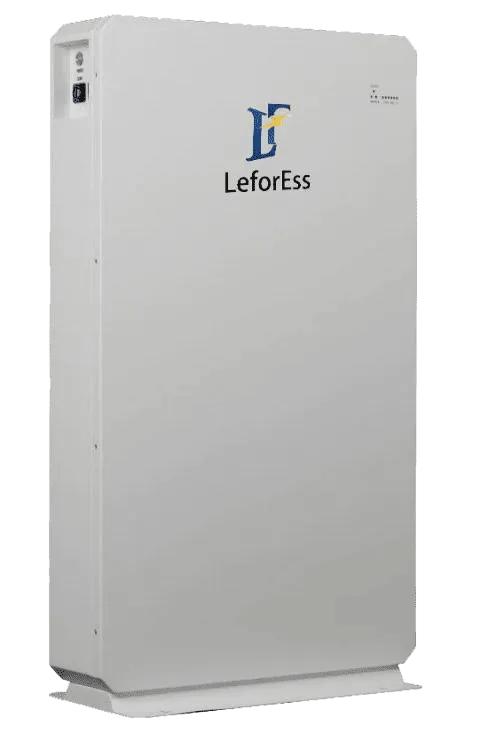

| Item Code | LF-ELESHELL-10.2K |
|---|---|
| Power | 10.24KWH |
| Battery Basic Specs | 51.2V 200Ah, 10.24KWH |
| Battery Type & Application | LiFePO4, Wall – mounted |
| Performance & Cycles | Grade A Cell ≥6000 cycles@80% DOD (5℃, 0.5C) |
| Parallel Info | 16 Units in parallel |
| Protection | IP65 |
| Warranty | 5 years |
11–12 kW
Ultra-High-Power Hybrid Solutions
| Item Code | LF12K-P1LA |
|---|---|
| Power | 12000W |
| MPPT Details | 2 trackers (1/1/1) 150–425V DC |
| Electrical Specs | 230V AC 50/60Hz 15600W Max Input 500V Max VOC |
| Battery Specs | Lithium/Lead-acid 40-60V |
| Comm. & Parallel | RS485/CAN/WIFI 6 parallel WIFI ✔️ |
| Protection | IP65 |
| Warranty | 5 years |
Why Choose Our Hybrid inverters
1. Performance-Driven Design
Our range of inverters and batteries is engineered for peak efficiency across diverse models:
- Inverters: Equipped with multiple MPPT trackers to maximize solar energy harvest, paired with broad voltage ranges that adapt to various installation setups.
- Batteries: Feature high-quality Grade A cells, ensuring long cycle lives (with many models offering ≥6000 cycles at 80% DOD) for durable, cost-effective energy storage.
2.Flexibility & Safety
- Battery Compatibility: Inverters work with both lithium-ion and lead-acid batteries, giving you the freedom to choose based on your needs.
- IP65 Protection: Dust and water-resistant builds make them suitable for both indoor and outdoor use, even in harsh environments.
- Safety First: Built-in safeguards like over-voltage protection and thermal management systems protect both the equipment and users.
3. Smart Control & Integration
- Connectivity: Inverters support RS485, CAN, and WIFI (where applicable) for real-time monitoring of energy flow, battery status, and system performance.
- Seamless Pairing: Designed to integrate smoothly with solar panels and existing grids, reducing reliance on the main power supply.
4. Warranty & Value
Backed by a 5-year warranty, our inverters offer long-term reliability. This commitment means fewer unexpected costs and greater confidence in your investment.
5. Scalable & Adaptable
From residential energy savings to commercial grid independence, our hybrid inverters scale to fit your needs—whether you require a small setup or a large-scale project.
Choose our hybrid inverters for efficiency, safety, and a sustainable energy future.
more about lefor
FAQ
Our hybrid inverters are compatible with lithium-ion and lead-acid batteries for flexible setup.
MPPT trackers optimize solar energy harvest by adapting to variable sunlight, maximizing efficiency in changing conditions.
Yes. Most inverters support up to 6 parallel units; select batteries can parallel up to 16 units, making scaling easy.
Yes. All have an IP65 rating (dust-tight, water-resistant), ideal for indoor/outdoor installation.
Inverters offer RS485/CAN/WIFI (where applicable) for real-time monitoring via app or software.
